[포인트캠] 두께설정 (조건파일 추가하기)

글쓴이 : 롤롤 날짜 : 2013-01-22 (화) 20:09 조회 : 2106

T 두께설정 어떻게 하나요?
지금 포인트캠 설정에Steel-030-T.cnd 조건설정만 되어있습니다.

롤롤 님의 묻고답하기 최신글 [더보기]

관리자

2013-01-23 (수) 20:59

1. 기종별 공종조건 에서
Steel-30T.cnd 파일을 더블클릭하여 내용전체를 복사

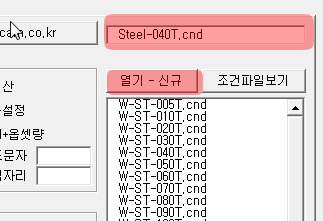

2. Steel-40T.cnd -> 열기-신규

3.
새 조건파일이 열리면
붙여넣기 한다음 옵셋값[OFFSET-1~4]과 전기조건[EPACK-1~4]을 수정한 다음
저장하면 됩니다.

롤롤

2013-01-24 (목) 09:26

;;;;;;;;;;;;;
;;[FILE-HEAD]
;;"(            ON OFF IP LN LF LS SV   FV   SF SC WT WS WP);"
;;"C000   =    010 020 016 002 020 05 33 0038 0030 000 008 005 047;"
;;"C001   =    015 014 016 003 023 02 33 0038 0050 000 011 006 060;"
;;"C002   =    002 007 016 002 008 06 61 0038 0150 000 011 006 012;"
;;"C003   =    002 007 016 002 008 06 61 0038 0150 000 011 006 012;"
;;"C003   =    002 007 016 002 008 06 61 0038 0150 000 011 006 012;"
;;"C904   =    002 007 016 002 008 06 61 0038 0150 000 011 006 012;"
[OFFSET-1~4]
0.150
[OFFSET-2]
0.185
0.128
[OFFSET-3]
0.208
0.143
0.128
[OFFSET-4]
0.210
0.145
0.130
0.128
[OFFSET-5]
0.210
0.145
0.130
0.128
0.128
[OFFSET-6]
0.210
0.145
0.130
0.128
0.128
0.128
[OFFSET-7]
0.210
0.145
0.130
0.128
0.128
0.128
0.128
[OFFSET-8]
0.210
0.145
0.130
0.128
0.128
0.128
0.128
0.128
[OFFSET-9]
0.210
0.145
0.130
0.128
0.128
0.128
0.128
0.128
0.128
[OFFSET-1P]
0.155
[OFFSET-2P]
0.185
0.128
[OFFSET-3P]
0.208
0.143
0.128
[OFFSET-4P]
0.210
0.145
0.130
0.128
[OFFSET-5P]
0.210
0.145
0.130
0.128
0.128
[OFFSET-6P]
0.210
0.145
0.130
0.128
0.128
0.128
[OFFSET-7P]
0.210
0.145
0.130
0.128
0.128
0.128
0.128
[OFFSET-8P]
0.210
0.145
0.130
0.128
0.128
0.128
0.128
0.128
[OFFSET-9P]
0.210
0.145
0.130
0.128
0.128
0.128
0.128
0.128
0.128
[WATER]
T84
T85
T85
T85
T85
T85
T85
T85
T85
T85
[EPACK-1~4] ;;1st
C210
C211
[EPACK-2] ;;2nd
C210
C211
C625
[EPACK-3] ;;3rd
C210
C211
C622
C652
[EPACK-4] ;;4th
C210
C211
C622
C652
C653
[EPACK-5] ;;5th
C210
C211
C622
C652
C652
C653
[EPACK-6] ;;6th
C210
C211
C622
C652
C652
C652
C653
[EPACK-7] ;;7th
C210
C211
C622
C652
C652
C652
C652
C653
[EPACK-8] ;;8th
C210
C211
C622
C652
C652
C652
C652
C652
C653
[EPACK-9] ;;9th
C210
C211
C622
C652
C652
C652
C652
C652
C652
C653
[EPACK-1P] ;;1st
C210
C211
[EPACK-2P] ;;2nd
C210
C211
C625
[EPACK-3P] ;;3rd
C210
C211
C622
C652
[EPACK-4P] ;;4th
C210
C211
C622
C652
C653
[EPACK-5P] ;;5th
C210
C211
C622
C652
C652
C653
[EPACK-6P] ;;6th
C210
C211
C622
C652
C652
C652
C653
[EPACK-7P] ;;7th
C210
C211
C622
C652
C652
C652
C652
C653
[EPACK-8P] ;;8th
C210
C211
C622
C652
C652
C652
C652
C652
C653
[EPACK-9P] ;;9th
C210
C211
C622
C652
C652
C652
C652
C652
C652
C653

;;;;;;;;;;;;; ;;[FILE-HEAD] ;;"(&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;&nbsp; ON OFF&nbsp; IP&nbsp; LN&nbsp; LF LS SV&nbsp;&nbsp; FV&nbsp;&nbsp; SF&nbsp; SC&nbsp; WT&nbsp; WS&nbsp; WP);" ;;"C000&nbsp;&nbsp; =&nbsp;&nbsp;&nbsp; 010 020 016 002 020 05 33 0038 0030 000 008 005 047;" ;;"C001&nbsp;&nbsp; =&nbsp;&nbsp;&nbsp; 015 014 016 003 023 02 33 0038 0050 000 011 006 060;" ;;"C002&nbsp;&nbsp; =&nbsp;&nbsp;&nbsp; 002 007 016 002 008 06 61 0038 0150 000 011 006 012;" ;;"C003&nbsp;&nbsp; =&nbsp;&nbsp;&nbsp; 002 007 016 002 008 06 61 0038 0150 000 011 006 012;" ;;"C003&nbsp;&nbsp; =&nbsp;&nbsp;&nbsp; 002 007 016 002 008 06 61 0038 0150 000 011 006 012;" ;;"C904&nbsp;&nbsp; =&nbsp;&nbsp;&nbsp; 002 007 016 002 008 06 61 0038 0150 000 011 006 012;" [OFFSET-1~4] 0.150 [OFFSET-2] 0.185 0.128 [OFFSET-3] 0.208 0.143 0.128 [OFFSET-4] 0.210 0.145 0.130 0.128 [OFFSET-5] 0.210 0.145 0.130 0.128 0.128 [OFFSET-6] 0.210 0.145 0.130 0.128 0.128 0.128 [OFFSET-7] 0.210 0.145 0.130 0.128 0.128 0.128 0.128 [OFFSET-8] 0.210 0.145 0.130 0.128 0.128 0.128 0.128 0.128 [OFFSET-9] 0.210 0.145 0.130 0.128 0.128 0.128 0.128 0.128 0.128 [OFFSET-1P] 0.155 [OFFSET-2P] 0.185 0.128 [OFFSET-3P] 0.208 0.143 0.128 [OFFSET-4P] 0.210 0.145 0.130 0.128 [OFFSET-5P] 0.210 0.145 0.130 0.128 0.128 [OFFSET-6P] 0.210 0.145 0.130 0.128 0.128 0.128 [OFFSET-7P] 0.210 0.145 0.130 0.128 0.128 0.128 0.128 [OFFSET-8P] 0.210 0.145 0.130 0.128 0.128 0.128 0.128 0.128 [OFFSET-9P] 0.210 0.145 0.130 0.128 0.128 0.128 0.128 0.128 0.128 [WATER] T84 T85 T85 T85 T85 T85 T85 T85 T85 T85 [EPACK-1~4] ;;1st C210 C211 [EPACK-2] ;;2nd C210 C211 C625 [EPACK-3] ;;3rd C210 C211 C622 C652 [EPACK-4] ;;4th C210 C211 C622 C652 C653 [EPACK-5] ;;5th C210 C211 C622 C652 C652 C653 [EPACK-6] ;;6th C210 C211 C622 C652 C652 C652 C653 [EPACK-7] ;;7th C210 C211 C622 C652 C652 C652 C652 C653 [EPACK-8] ;;8th C210 C211 C622 C652 C652 C652 C652 C652 C653 [EPACK-9] ;;9th C210 C211 C622 C652 C652 C652 C652 C652 C652 C653 [EPACK-1P] ;;1st C210 C211 [EPACK-2P] ;;2nd C210 C211 C625 [EPACK-3P] ;;3rd C210 C211 C622 C652 [EPACK-4P] ;;4th C210 C211 C622 C652 C653 [EPACK-5P] ;;5th C210 C211 C622 C652 C652 C653 [EPACK-6P] ;;6th C210 C211 C622 C652 C652 C652 C653 [EPACK-7P] ;;7th C210 C211 C622 C652 C652 C652 C652 C653 [EPACK-8P] ;;8th C210 C211 C622 C652 C652 C652 C652 C652 C653 [EPACK-9P] ;;9th C210 C211 C622 C652 C652 C652 C652 C652 C652 C653

롤롤

2013-01-24 (목) 09:26

이런식으로 넣어주면 되는건가요 ?

관리자

2013-01-24 (목) 09:43

[OFFSET-1~4]
[EPACK-1~4] ;;1st

가 아니라

[OFFSET-1]
[EPACK-1]

입니다.

1~4는 1차부터 4차까지라는 의미로 설명드린 겁니다.
좀 애매하게 설명드렸네요.

롤롤

2013-01-28 (월) 09:27

감사합니다.!
