(2014-04-03)
//(TEST)
H1=0.178
H2=0.143

G90
G92X0.Y0.
M20

N11
H1
E0M90
G90
G92X0.Y0.
G41G01X-3.5355Y-3.5356
E1
G03X4.8297Y-1.2941I3.5355J3.5355//(R5.)
G03X-1.294Y4.8296I-4.8296J1.2941//(R5.)
G03X-4.9817Y-0.4265I1.2941J-4.8296//(R5.)
M21
G40G00X-4.6828Y-0.4009
X-4.4836Y-0.3839

N10
G00X0.Y0.
M20

N8011
H1

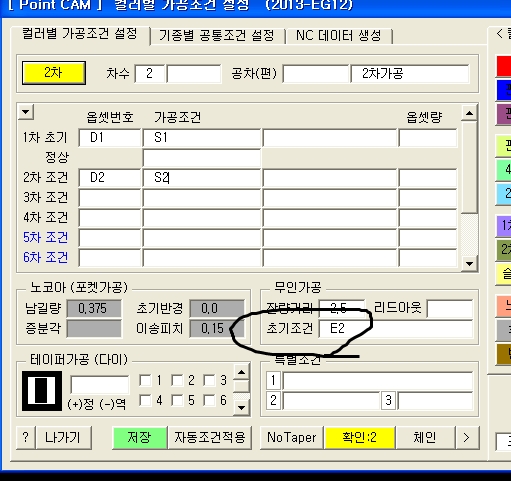

E0M90    --------- E2 조건이 오도록 가능여부(끊김 현상이 있어 약수압으로 변경)
G90
G92X0.Y0.
G42G01X-3.5355Y-3.5356
E1
G02X-4.8502Y-1.2147I3.5355J3.5355//(R5.)
M00 //(CHIP)
G02X-4.9983Y-0.127I4.8502J1.2147//(R5.)
G40G01X-4.6984Y-0.1194   --------- G40G00 복귀 가능 여부
X-4.4985Y-0.1143

N12
/H2
/E2M90
/G90
/G92X0.Y0.
/X-3.3234Y-3.3234
/G41G01X-3.5355Y-3.5356
/G03X4.8297Y-1.2941I3.5355J3.5355//(R5.)
/G03X-1.294Y4.8296I-4.8296J1.2941//(R5.)
/G03X-3.5355Y-3.5356I1.2941J-4.8296//(R5.)
/G03X-3.3171Y-3.7412I3.5355J3.5355//(R5.)
/G40G01X-3.3234Y-3.3234   --------- G40G00 복귀 가능 여부
M21
M02
%
